| 5MP Fisheye Fixed Dome Network Camera |
| IPC815SR-DV(S)PF14 |
|
|
1/2.8",progressive scan,CMOS
Up to 2592×1944 resolution,30fps
Panoramic view
Smart IR, up to 10m IR distance
Built-in Mic
2D/3D DNR, ROI,ONVIF
|
|
PF14-1.jpg)

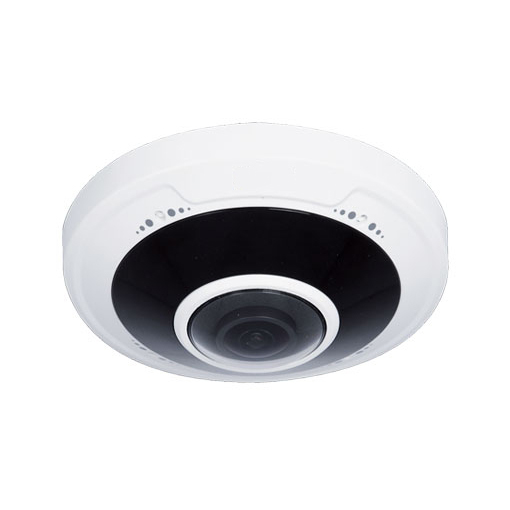

PF14-2.jpg)
|
|
|
|
Optics
Ultra wide angle lens, 360° panoramic image
Smart IR, Up to 10 m (33ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
Built-in omni directional microphone (IPC815SR-DVPF14)
Triple stream
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -40°C to 60°C (-40°F to 140°F)
Wide voltage range of ±25%
IK10
IP66
|
|
|
IPC815SR-DVPF14
|
IPC815SR-DVSPF14
|
|
Camera
|
|
Image sensor
|
1/2.8", progressive scan, 5.0 megapixel, CMOS
|
|
Lens
|
1.4mm@F2.0
|
|
DORI Distance
|
Lens
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
1.4mm
|
31.5
|
12.6
|
6.3
|
3.2
|
|
Angle of View
|
360°
|
|
Shutter
|
Auto/Manual, shutter time: 1~1/100000 s
|
|
Minimum Illumination
|
Colour: 0.01 Lux (F2.0, AGC ON)
0 Lux with IR
|
|
Day/Night
|
IR-cut filter for day & night function
|
|
S/N
|
>55dB
|
|
IR Range
|
UP to 10m (33ft)
|
|
wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream: (2592×1944): Max.30fps;
Sub Stream: (1920×1080): Max.30fps;
Third Stream: D1(720 x 576): Max.30 fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
OSD
|
Up to 8 OSDs
|
|
ROI
|
Up to 8 areas
|
|
Privacy Mask
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Flip Vertical/ Flip Horizontal/180°
|
|
Dewarping
|
N/A
|
|
HLC
|
N/A
|
|
BLC
|
Support
|
|
Audio
|
|
Audio Compression
|
G.711
|
N/A
|
|
Two-way audio
|
Supported
|
N/A
|
|
Suppression
|
Supported
|
N/A
|
|
Sampling Rate
|
8 KHZ
|
N/A
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 256GB
|
|
Network Storage
|
ANR, NAS(NFS)
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Live View Display
|
|
Mount Type
|
Support table, wall, and ceiling
|
|
Interface
|
|
Audio I/O
|
Input: impedance 35 kΩ; amplitude 2 V [p-p]
|
N/A
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p]
|
N/A
|
|
Alarm I/O
|
1/1
|
N/A
|
|
Built-in Mic
|
Supported
|
N/A
|
|
Video Output
|
1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
|
N/A
|
|
Network
|
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC12V±25%,PoE (IEEE 802.3af)
|
|
Power consumption: Max. 8.9 W
|
|
Dimensions (Φ × H)
|
Φ125 × 43.7 mm (Φ4.9" × 1.7")
|
|
Net Weight
|
0.39kg (0.86lb)
|
|
Material
|
Metal + Plastic
|
|
Working Environment
|
-40°C~60°C (-40°F~140°F), Humidity: ≤95% RH
|
|
Strorage Environment
|
-40°C~60°C (-40°F~140°F), Humidity: ≤95% RH
|
|
surge protection
|
6KV
|
|
Ingress Protection
|
IP66
|
|
Vandal Resistant
|
IK10
|
|
Reset Button
|
Supported
|
|
|
|
|
|
| |
|
