Optics
LightHunter illumination
Day/night functionality
Up to 50 m (164 ft) IR and 10m (33 ft) warm light distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
Built-in microphone & speaker
Alarm Light
Triple streams
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -20°C ~ 60°C (-4°F to 140°F)
Wide voltage range of ±25%
IP66
|
|
|

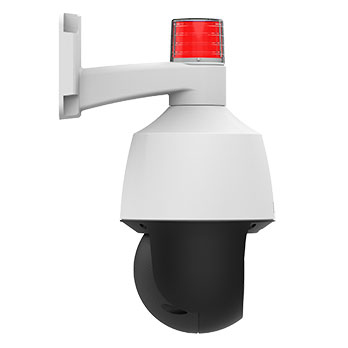

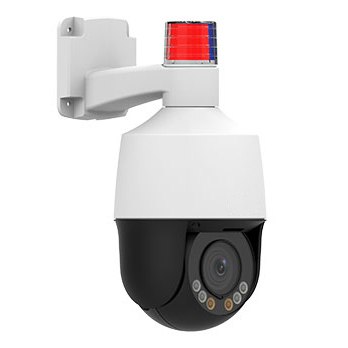

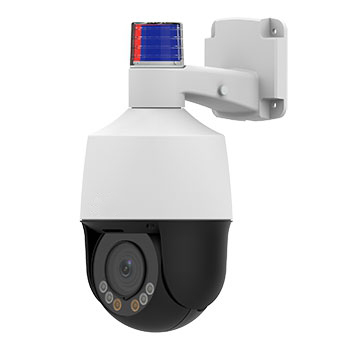

IPC672LR-AX4DUPKC
|
|
Camera
|
|
Sensor
|
1/2.8" progressive scan, 2.0 megapixel, CMOS
|
|
Lens
|
2.8~12mm，AF automatic focusing and motorized zoom lens
|
|
DORI Distance
|
Lens
|
Detect(m)
|
Observe(m)
|
Recognize(m)
|
Identify(m)
|
|
2.8mm
|
43.4
|
17.4
|
8.7
|
4.3
|
|
12mm
|
186.2
|
74.5
|
37.2
|
18.6
|
|
Angle of View (H)
|
32.5°~95.7°
|
|
Angle of View (V)
|
18.4°~52.2°
|
|
Angle of View (O)
|
36.9°~100.8°
|
|
Shutter
|
Auto/Manual, shutter time: 1 s ~ 1/100000 s
|
|
Minimum Illumination
|
Colour:0.001 lux (F1.6,AGC ON)
0 lux with IR
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>52 dB
|
|
IR Range
|
UP to 50m (164ft)
|
|
Wavelength
|
850nm
|
|
IR On/Off Control
|
Auto/Manual
|
|
Warm Light Range
|
UP to 10m (33ft)
|
|
WDR
|
120dB
|
|
Video
|
|
Video Compression
|
Ultra 265,H.265, H.264, MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile
|
|
Frame Rate
|
Main Stream:1080P (1920*1080):Max. 30 fps; 720P (1280×720):Max. 30 fps;
Sub Stream: 720P (1280×720):Max. 30 fps;
Third Stream: CIF (352*288): Max. 30 fps
|
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
OSD
|
Up to 8 OSDs
|
|
Privacy Mask
|
Up to 8 areas
|
|
ROI
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
|
|
White Balance
|
Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart IR
|
Support
|
|
Flip
|
Normal/Vertical/Horizontal/180°
|
|
Dewarping
|
Support
|
|
HLC
|
Supported
|
|
BLC
|
Supported
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8 KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 128 GB
|
|
Network Storage
|
ANR, NAS(NFS)
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
|
|
Compatible Integration
|
ONVIF(Profile S, Profile G, Profile T), API
|
|
Client
|
EZStation
EZView
EZLive
|
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
|
Pan & Tilt
|
|
Pan Range
|
345°
|
|
Pan Speed
|
0.1°/s ~ 50°/s
|
|
Preset speed: 50°/s
|
|
Tilt Range
|
90°
|
|
Tilt Speed
|
0.1° ~ 40°/s
|
|
Preset speed: 40°/s
|
|
Number of Presets
|
256
|
|
Patrol
|
Preset patrol, Route patrol
|
|
Interface
|
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
Built-in Mic
|
Supported
|
|
Built-in Speaker
|
Supported
|
|
Alarm Light
|
Supported
|
|
Certifications
|
|
Certifications
|
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
|
|
General
|
|
Power
|
DC 12V±25%, PoE (IEEE802.3 at)
|
|
Power consumption: Max 16 W
|
|
Dimensions (Ø x H)
|
Φ133mm*269.4mm (Φ5.2”x 10.6”)
|
|
Net Weight
|
0.87 kg (1.92lb)
|
|
Gross Weight
|
1.13 kg (2.49lb)
|
|
Material
|
Metal + Plastic
|
|
Working Environment
|
-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
|
|
Strorage Environment
|
-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
|
|
Surge Protection
|
4KV
|
|
Ingress Protection
|
IP66
|
|
Reset Button
|
Supported
|
|
|
|
